The B777–200 LCF is offered in two configurations: UL - Upper Lobe and GMF - General Market Freighter
without Upper Lobe

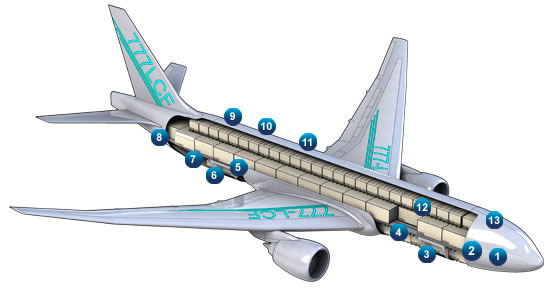

B777–200 LCF – UL

details

  • Supernumerary Area /
    Intercom /
    Emergency Equipment /
    Lavatory / Galley

  • Upper Lobe Forward Lift

  • Fwd Cargo Door
    CLS Modification

  • Forward Lift

  • Aft Lift

  • Aft Cargo Door
    CLS Modification

  • MD Cargo Loading System

  • Upper Lobe Aft Lift

  • MD Lights

  • Interior Configuration:
    MD Class “E” /
    Doors Deactivation /
    Window Plugs Optional

  • Systems:
    ECS / Smoke Detection /
    Water & Waste /
    Drain / Oxygen

  • Upper Lobe Powered CLS

  • 9G Barrier /
    Smoke Barrier /
    Acces Door

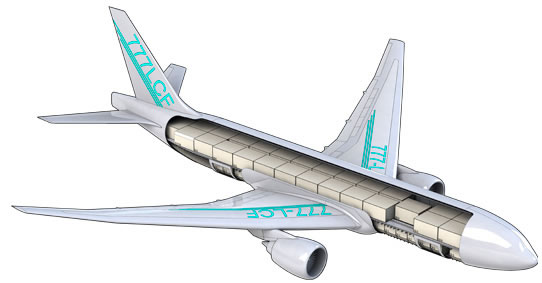

B777-200 LCF - GMF

details

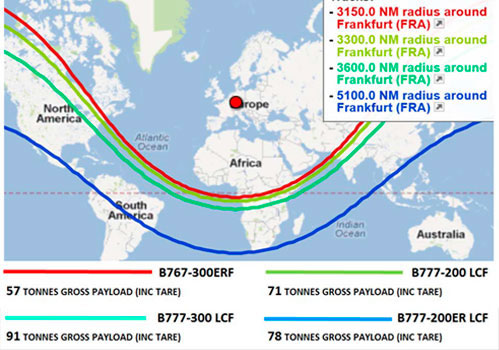

B777-200 LCF Payload Range versus B767-300ERF

map

Loading and unloading times are comparable to main deck freighters. To see computer simulations showing the LCF lift operation and the loading sequences on the B777 conversion click here: Footage of the B777 loading sequence.
