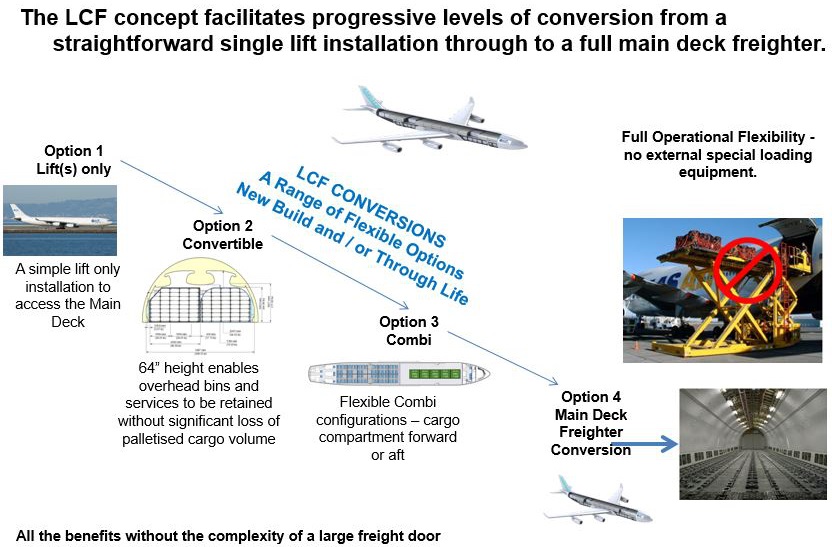

The LCF concept readily adapts the entire A340 family aircraft to offer freighter capability.



A340–300 LCF

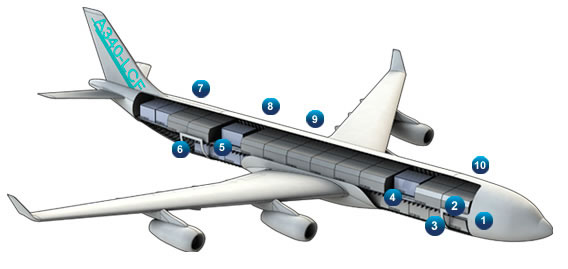

details

  • Supernumerary Area /
    Intercom / Emergency
    Equipment /
    Lavatory / Galley

  • Cargo Loading System

  • Fwd Cargo Door
    CLS Modification

  • Forward Lift

  • Aft Lift

  • Aft Cargo Door
    CLS Modification

  • MD Lights

  • Systems:
    ECS / Smoke Detection /
    Water & Waste /
    Drain / Oxygen

  • Interior Configuration:
    MD Class “E” /
    Doors Deactivation /
    Window Plugs Optional

  • 9G Barrier /
    Smoke Barrier /
    Acces Door

The A340–300 LCF offers highly competitive payload, volume and range at a significantly lower investment cost.

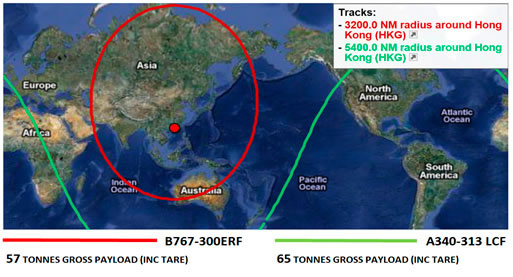

The A340–300 LCF Payload Range versus B767-300ERF

map

Loading and unloading times are comparable to main deck freighters. To see computer simulations showing the LCF lift operation and the loading sequences on the A340 conversion click here. Footage of the A340-300 loading sequence.
